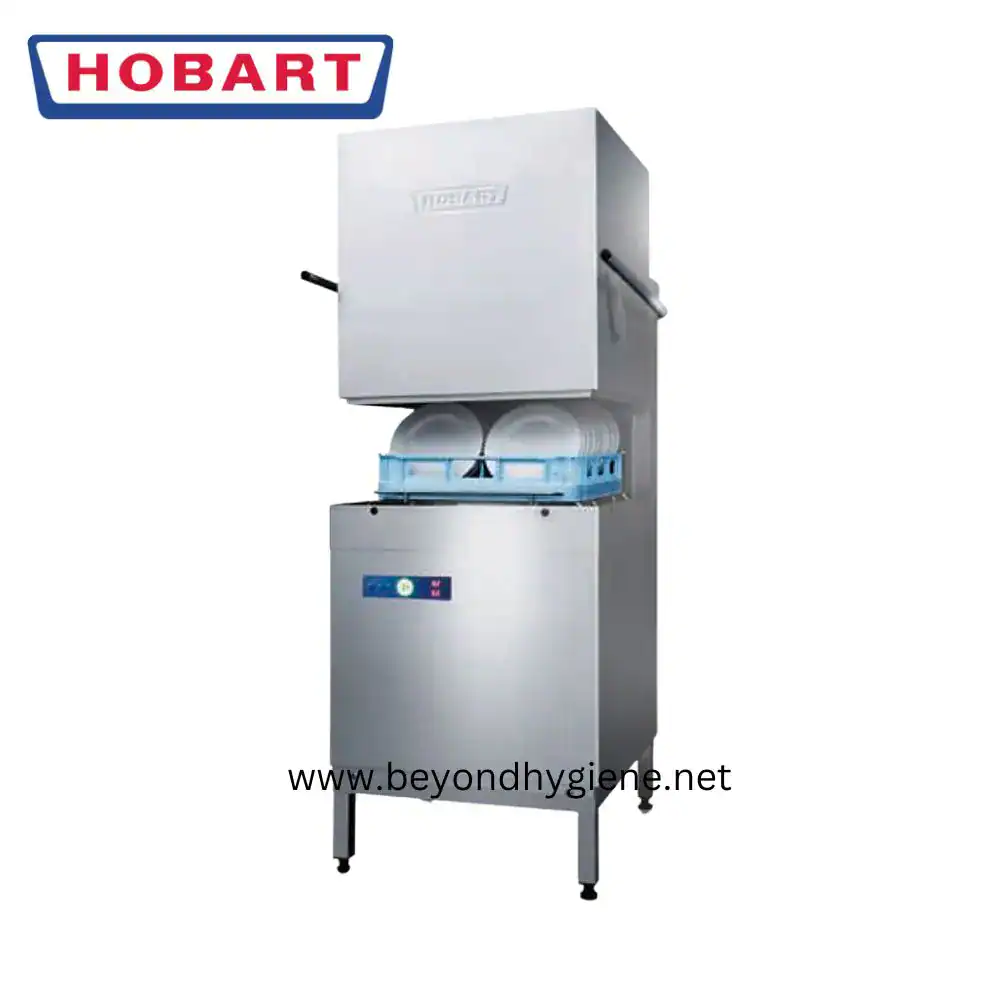

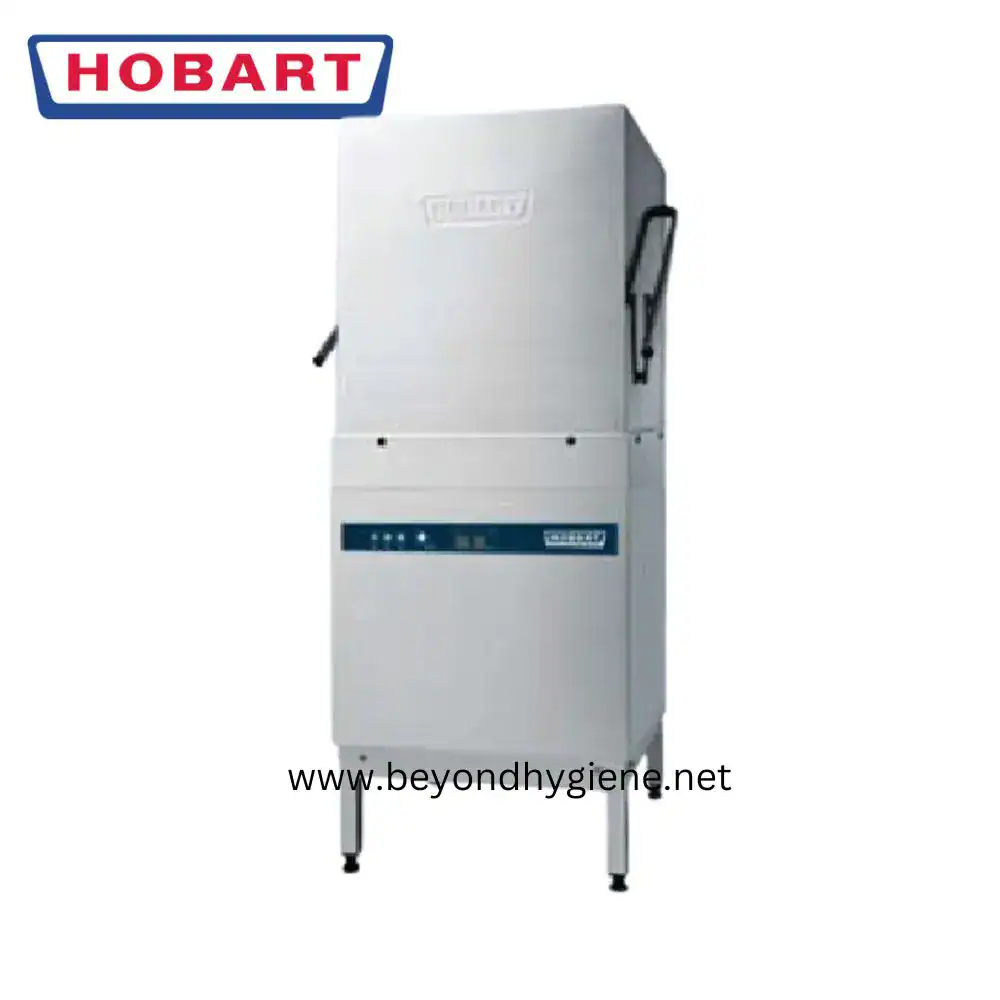

Hobart Hood Type Dishwasher AM650

Product Description:

The Hobart Hood Type Dishwasher AM650 is a premium commercial dishwasher engineered to meet the demanding needs of hotels, restaurants, and employee dining rooms. With a robust design and advanced features, this machine delivers fast, efficient, and hygienic cleaning for various types of wares, including plates, glasses, and utensils.

Application:

The AM650 is ideal for busy dishwashing rooms, offering high performance and reliability for environments that require quick turnaround and thorough cleaning.

Wash Capacity:

• 60 racks/hour: Handles up to 1080 plates or 1500 glasses per hour.
• 40 racks/hour: Cleans 720 plates or 1000 glasses per hour.
• 20 racks/hour: Perfect for lighter loads, with a capacity of 360 plates or 500 glasses per hour.

Key Features and Benefits:

1. IoTronic Control System:
   • Intuitive color touch keys with fault diagnosis for easy operation.
   • Provides performance data, including power and water consumption, for better resource management.
2. Ergonomic Design:
   • Lightest door lift design minimizes labor intensity.
   • Completely molded wash tank reduces dirt accumulation, ensuring better hygiene.
3. Advanced Cleaning Performance:
   • Patented anti-clog nozzles maximize water efficiency and ensure superior cleaning.
   • Separate rotation structure prevents cross-contamination during rinsing.
4. Precise Temperature Control:
   • Thermostop feature ensures rinse temperature meets hygiene standards.
   • LED displays for wash and rinse temperatures provide real-time monitoring.
5. Energy Efficiency:
   • High-quality heat insulation material minimizes heat loss.
   • Low water consumption of just 2.5L per rack reduces operational costs.
6. Easy Maintenance:
   • Key components are accessible from the front for convenient maintenance.
   • Large 2-piece stainless steel plate filter is easy to remove and clean.

Specifications:

• Loading Height: 420 mm
• Rack Size: 500×500 mm
• Wash Temperature: 65-75°C
• Rinse Temperature: 82-90°C
• Water Consumption: 2.5L/rack
• Wash Tank Volume: 26 liters
• Wash Pump Power: 0.6kW
• Tank Heating: 3kW
• Booster Heating: 12kW
• Total Power Load: 15.7kW
• Voltage: 380V/50Hz/3N~
• Dimensions (W×D×H): 636×745×1445mm
• Net Weight: 108 kg

Installation Parameters:

• Install a main switch to disconnect electrical power to the machine.
• Include manual shut-off valves for water supply.
• Ensure all drain and ventilation connections comply with national codes.
• Pipework external to the machine must be completed on-site.

Why Choose the Hobart AM650 Dishwasher?

The Hobart AM650 is a versatile, energy-efficient, and high-performance dishwashing solution that guarantees hygiene and operational efficiency. Its advanced features, including IoTronic control and anti-clog nozzles, ensure that your dishwashing tasks are completed with precision and ease.

For a reliable and efficient commercial dishwasher, the Hobart AM650 is the ultimate choice for maintaining spotless and safe wares.

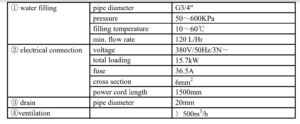

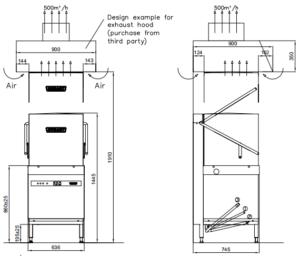

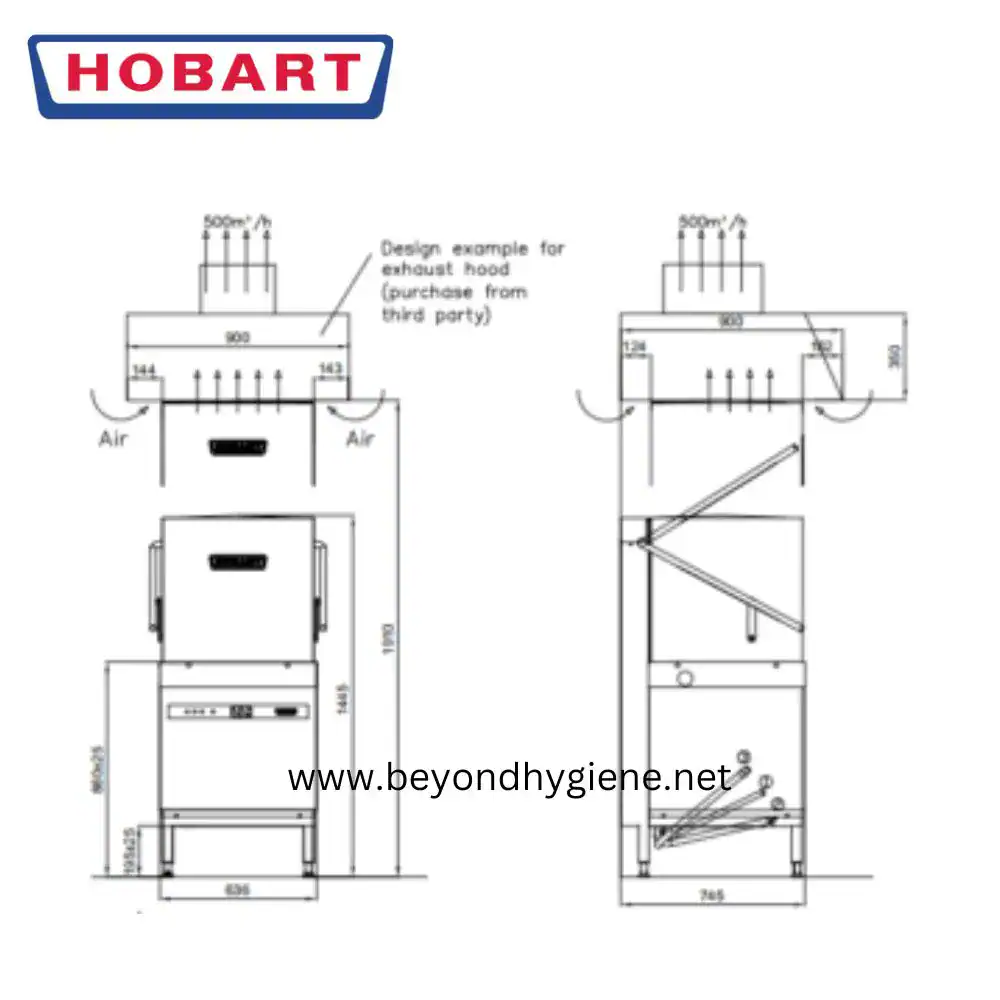

Installation Parameters

Note:
(a) Must install the main switch to disconnect electrical power to the machine and manual shut off
valves for water.
(b) All drain and ventilation connections must be made in accordance with national codes.
(c) Pipework external of the machine is to be done on site.
