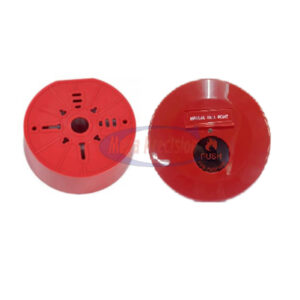

Manual Push Station AH-9717

Product Description

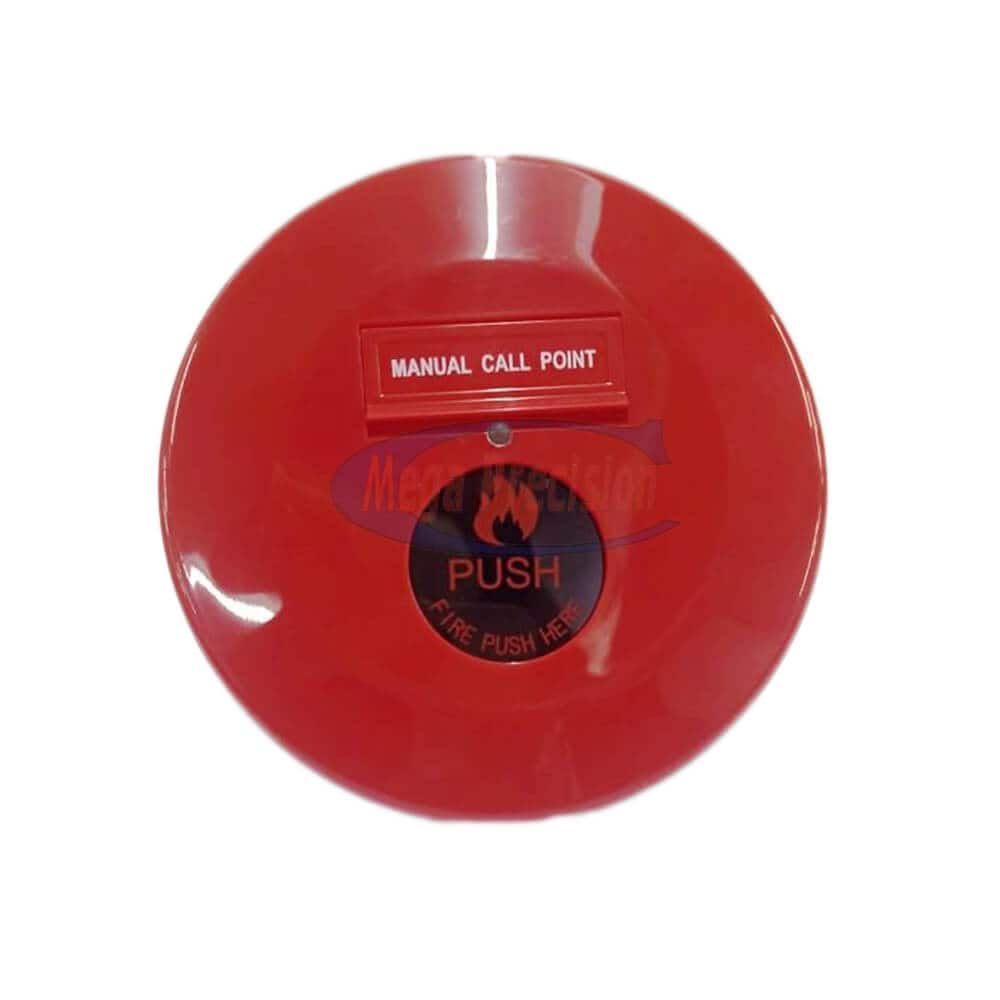

The Manual Push Station (Model AH-9717) is a crucial component for any fire safety system, designed for quick and reliable activation of emergency alarms. With a simple press of the button, this device immediately outputs a fire alarm signal, ensuring that help is on the way.

The indicator above the fire alarm push-button confirms that the alarm signal has been successfully transmitted. This model is equipped with additional features, including a phone jack and a reset button conveniently located behind the cover cap, enhancing its functionality and ease of use.

Key Features

• Model: AH-9717
• Operating Power: 24V DC, 30mA for efficient performance.
• Operating Contact: Max 30V DC, 500mA, suitable for various applications.
• Sub-Functions: Includes a phone jack, confirmation lamp, and reset button for comprehensive functionality.
• Material: Constructed from fire-proof plastic, ensuring safety and durability.
• Dimensions: 140 mm (diameter) x 45 mm (height), compact and easy to install.
• Approximate Weight: 160 g, lightweight for convenient installation.

Additional Information

• Type 1: Simultaneous dual loop functionality.
• Type 2: Simultaneous dual signal transfer, enhancing alarm response capabilities.

In summary, the Manual Push Station AH-9717 is an essential tool for effective fire safety management, providing quick access to alarm activation and confirmation of signal transmission. Its robust design and multiple features make it a reliable choice for any emergency response system.
